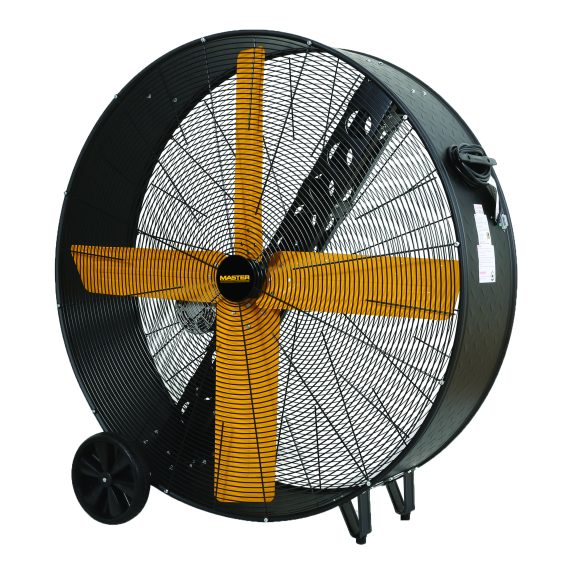

MASTER 48" Belt Drive Barrel Fan

MAC-48-BDF
Product Description

The Master® MAC-48-BDF barrel fan keeps your space feeling cooler by circulating large volumes of air.
Great for spaces with or without air conditioning, this barrel fan can take the edge off of your monthly energy bill. Circulate some air before turning on the A/C, or leave the A/C off altogether.
The MAC-48-BDF uses our quiet belt-drive design, which helps prolong the life of the motor. It also features our convenient fold-out wheel design that makes mobility easy and storage simple.
Whether it’s a warehouse, garage, barn, or a crowded summer gathering, Master high capacity fans are an efficient way to cool all types of spaces.

Features

2 Speeds

4-blade, oversized fan

Heavy-duty solid wheels

Machined, built-in handle

Powerful, steel construction

OSHA-compliant safety guards

Specifications

Brand
Master
Cfm (free Air)
17200
Rpm 60 Hz Motor
108
Drive
Belt
Phase
1
Speeds
2
Container Qty (40 Ft. N / 40 Ft. Hq)
73/110
Cord
Included - Wired
Diameter (inches)
48
Frequency (hz)
60
Nameplate Amps
9.2
Power (hp)
1
Product Dimensions (l X W X H Inches)
49.2 x 21.3 x 50.2
Product Net Weight (lbs)
103
Switch
On product
Voltage
120
Blade Material
Balanced Steel
Cfm (high)
17200
Product Shipping Dimensions (in)
50 X 15 X 50
Able To Ship Small Parcel
No
Cfm (low)
10600
Cfm Range (free Air)
10001 - 15000
Cord Length (feet)
10
Fixed Or Portable
Portable
Product Certifications
UL
On Board Reservoir
No
Country Of Origin
China
Housing Color
Black
